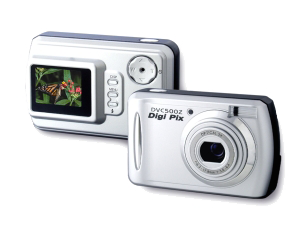

DVC500Z Series


Compact digital 5.0 Mega Pixels Zoom Camera.
@

-

3x optical zoom, 6.1mm - 18.3mm

-

4x digital zoom

-

1/2 inch CMOS 3.0 million pixel

-

1.5" TFT colour LCD display

-

SD card storage media

-

62.7(H) x 100(W) x 32(D)mm

-

Two AA size alkaline batteries

-

Mass storage for WinME, Win2000, WinXP

@ @

@

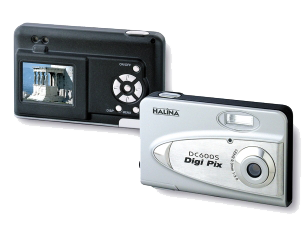

DC600S Series


Super slim digital 6.0 Mega pixels still camera with 1.5 inch TFT color LCD
@

-

1/2 inch CMOS 3.0 million pixels

-

9.3mm, F3.0, 6 elements all glasses lens

-

1.5 inch TFT color LCD monitor

-

4x digital zoom

-

Movie in AVI format, 320x240 resolution in 20 fps

- SD card storage media

-

56.5(H) x 90.4(W) x 15(D)mm in dimensions

-

Two AAA size alkaline batteries

-

Mass storage device for WinME, Win2000, WinXP

@ @

@

@

@



DC 400S Series


Super slim digital 4.0 Mega pixels still camera with 1.5 inch TFT color LCD

-

1/2 inch CMOS 2.0 million pixels sensor

-

2348 x 1761 (4MP, interpolated),
2048 x 1536 (3MP, interpolated),
1600 x 1200 (2MP)
800 x 600 (0.48MP)
320 x 240 (0.08MP) recorded pixels

-

9.4mm, F/3.0, 6 elements, all glasses lens

-

4X digital zoom

-

1.3m V infinity focusing range

-

Fix focus

-

1.5 inch TFT color LCD

- 2 seconds (without flash) quick processing time
- White balance control, Auto / Sunlight / Cloudy / Fluorescent / Incandescent
- Built-in flash, Auto / On / Off
- Self-timer
- SD memory card
- JPEG image file format
- AVI format, 320 x 240 resolution in7 fps in movie mode
- Two AAA size alkaline batteries (not included)
- 56.5(H) x 90.4(W) x 15(D) mm in dimension
- Mass storage device for Win2000/ME/XP
- Internal memory (optional)

DC300SP / DC500SP Series


Compact digital 3.0 / 5.0 Mega Pixels splash proof camera with 1.8 inch TFT color LCD.
@

-

1/2 inch CMOS 2.1/ 3.0  million pixels sensor

-

7.5mm, F/3.0 (38mm equivalent to 35mm film),
5 elements, all glasses lens

-

Splash proof, IPX6

-

4x digital zoom

-

1.3m V infinity focusing range
0.27m V 0.34m in macro

-

Fix focus

-

1.8 inch TFT color LCD

-

4 white balance modes, auto, daylight, horizon, alight, office

-

Built-in flash

-

Self-timer

-

SD memory card

-

AVI format file at 320x240 resolution, 10 frames per second in movie

-

Two AA size alkaline batteries

-

73(H) x 101(W) x 35.2(D) mm in dimensions

- Mass storage for WinME, Win2000, WinXP, Mac OS
- Internal memory (Optional)
@ @

@

DVC 300 / DVC 500 Series


Compact digital 3.0 / 5.0  Mega Pixels still camera and video camcorder with 1.8 inch large TFT color LCD.

@

-

1/2 inch CMOS 2.0 / 3.0 million pixels sensor

-

7.5mm, F/3.0 (38mm equivalent to 35mm film),5 elements, all glasses lens

-

4x digital zoom

-

1.8 inch TFT color LCD

-

4 white balance modes: auto, sunlight, lamp, office

-

4 flash modes: auto, red-eye reduction, on/off [ISO 100] 1.2m to 2.7m (4' - 9')

-

Build-in self-timer

-

SD memory card

-

Movie mode at 320x240 resolution with
audio recording,

-

Audio recording (8KHz, 4 bit)

-

Build-in speaker

-

15 frame per second at 640x480 resolution
 in web cam mode

-

Two AA size alkaline batteries

-

62.7(H) x 94(W) x 29(D) mm (Dimension)

@

| PHOTO SAMPLE |


DB 200 Series


Roof prism type binoculars with built-in 2M pixels digital camera

@ Binoculars

-

8x magnification

-

22mm objective lens diameter

-

12.8m to infinity focusing Range

@

Digital camera

-

34mm (equivalent to 150mm in 35mm format) F/4.5 lens

-

1600x1200(2.0M pixels),1280x1024 pixel (1.3M pixels),640x480 (0.3M pixels) recorded pixels

-

1.3 megapixel, 1/2 inch CMOS sensor

-

16 MB internal memory

-

5.6m to infinity focusing range

-

Full features status LCD

-

Max. 60 seconds movie recording

- 15 frame rate video conferencing
- Two AAA size alkaline batteries
- 90(W) x 113(H) x 39.6(D)mm
@ @
@ @
@ @

@


ZMAE1900 Serie


Full features compact 3x zoom camera for 35mm film with marco mode

-

28mm-85mm, 5 element hybrid zoom lens with motorised control

-

Active infra red auto focus system (8 zones) with additional infinity focus mode, close focus mode and focus lock

-

Real image zooming optical viewfinder

@

Full function LCD displays frame number, flash mode (auto flash, fill flash & flash off), red eye reduction mode and focus mode

-

Self timer (10 seconds duration with blinking LED indicator)

-

117 x 64 x 45.2mm (dimension)

-

1 x CR2 Lithium battery (power source)

-

Optional Databack

Specification and equipment are subject to be changed without any notice or obligation on the part of the manufacturer

@
